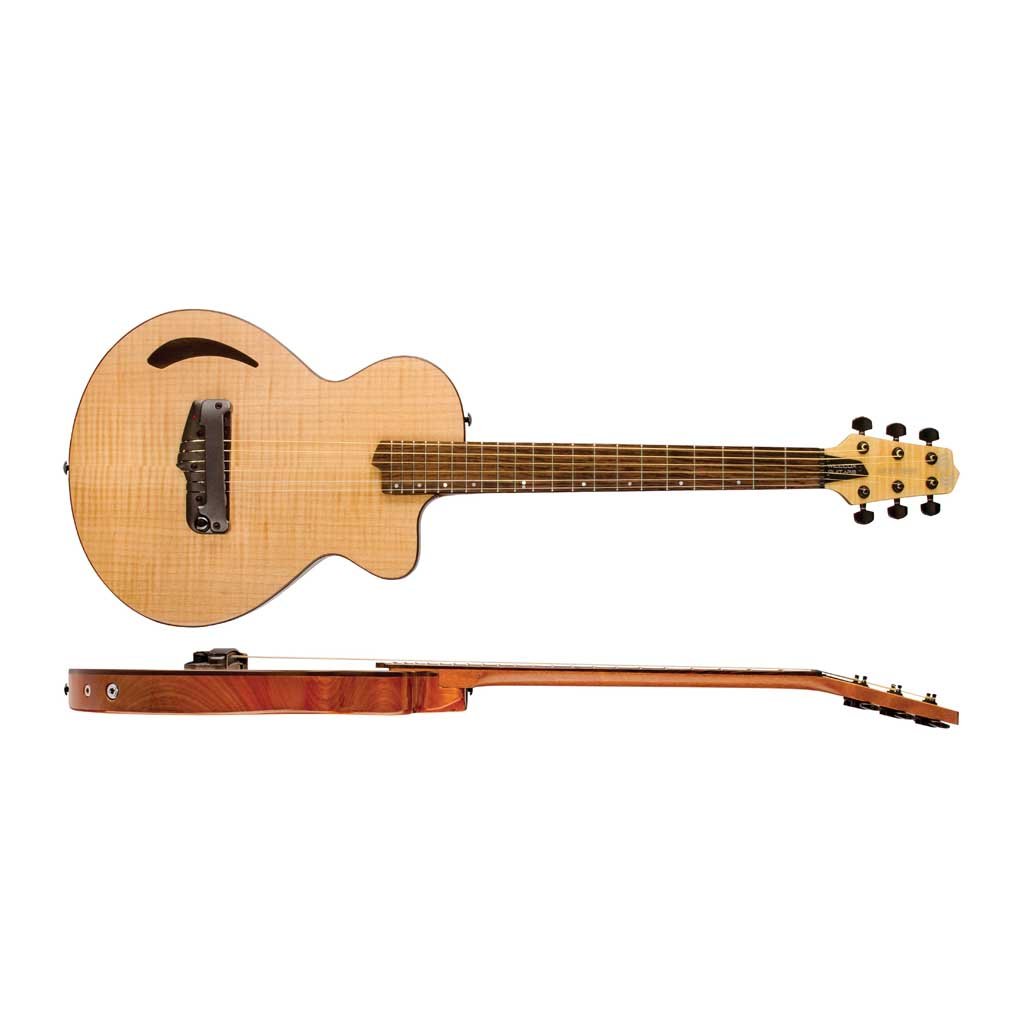

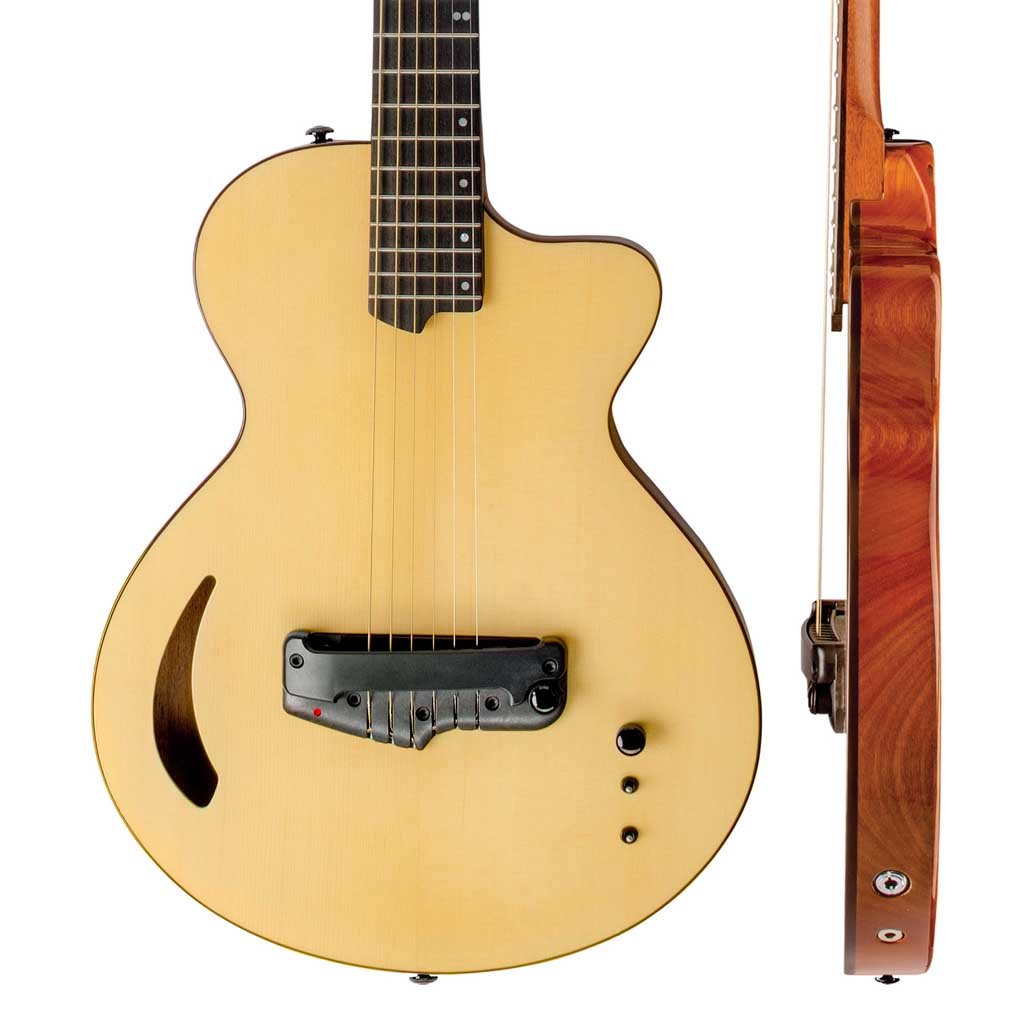

Atlantis HexFX Guitar


The Atlantis HexFX Guitar is a high performance, professional electric guitar featuring our exclusive, patented LightWave Analog Optical Pickup System Technology. The HexFX Technology in this instrument provides individual string outputs, along with a summed mono output, to a 13-pin DIN connector. The resulting output enables full synth access, individual string processing and modeling, as well as the use of a fanout box. The optical pickup technology provides ultra-fast and accurate tracking, glitch free and with no latency and no false triggering. The tonal possibilities are unlimited! All instrument orders come with a 14 day no questions asked money back guarantee to ensure you are 100% satisfied with your purchase.

SKU: N/A Categories: ,
  • Chambered Mahogany Body & Solid Mahogany Neck

    Slightly brownish in its natural, dried state, with a varied wood grain, mahogany is a highly praised tone wood for acoustic and electric instruments alike.

  • Finish options for the Atlantis Guitar

    Premium Tone Woods

    The Atlantis HexFX has a Spruce Top and is available in Clear Gloss and UltraBlack finishes.

  • LightWave System3 analog optical pickup system

    Our optical pickup system uses infrared light to sense string vibration, and features a totally separate transducer for each string, giving you a pure signal with zero interference.

  • HexFX 13-pin Output Technology

    HexFX Instruments feature an individual string output with the 13-pin DIN connector as well as a summed mono 1/4″ jack. The resulting output enables full synth access, individual string processing and modeling.


  • Body Type: Thinline (40mm)
  • Body Wood: Chambered Mahogany
  • Top Wood: European Spruce with Soundhole
  • Body Finish: Gloss Polyurethane (Clear Gloss or Ultra Black)


  • Number of Strings: 6
  • Number of Frets: 21
  • Scale Length: 25.5″
  • Attachment: Bolt-On (4 Bolt)
  • Neck Wood: Mahogany
  • Neck Finish: Satin Polyurethane
  • Fingerboard: Rosewood
  • Fretboard Radius: 14″
  • Neck Shape: Low-Profile ‘C’ Neck Carve
  • Inlays: Mother-of-Pearl Dots


Hardware and Electronics

  • Pickups: LightWave Analog Optical Pickup
  • Bridge: TUSQ® Nut and Saddle
  • PreAmp: LightWave Designed Active PreAmp
  • Outputs:
    • Standard 1/4″ Mono
    • 13-pin DIN Individual String
  • Controls:
    • Master Volume
    • Pull-up Tone Control
    • 13 Pin Volume
    • Output Selector Switch
    • Program Selector Switch
  • Power:
    • 16 Hours playing time with 2-hour recharge
    • Rechargeable NiMH Internal Battery
  • Accessories:
    • ProTec Deluxe Gig Bag
    • User Manual
    • Charger
    • Tool Kit

Every Atlantis HexFX Guitar purchase includes a Protec Padded Gig Bag, Tabletop International Charger, Tools, & Manual.

Production Time

When an instrument is ordered, it is assembled, set up, and tested at our Santa Barbara, California facility. There is a 7 – 10 business day processing period before we ship your instrument.

Shipping Policy

We provide our customers with free complementary shipping for all orders within the continental United States. For international orders as well as those shipped to Alaska and Hawaii, we use FedEx GreatRates service, which offers reduced shipping charges.

If you are shipping to an international address, you will be contacted within 48 hours of purchasing a complete instrument from Willcox Guitars regarding an additional shipping fee (estimated fees are anywhere between $70 -$375) that you will be required to pay before the instrument ships out.

This amount may be paid with the same method of payment used to purchase the instrument and will require your verification.
